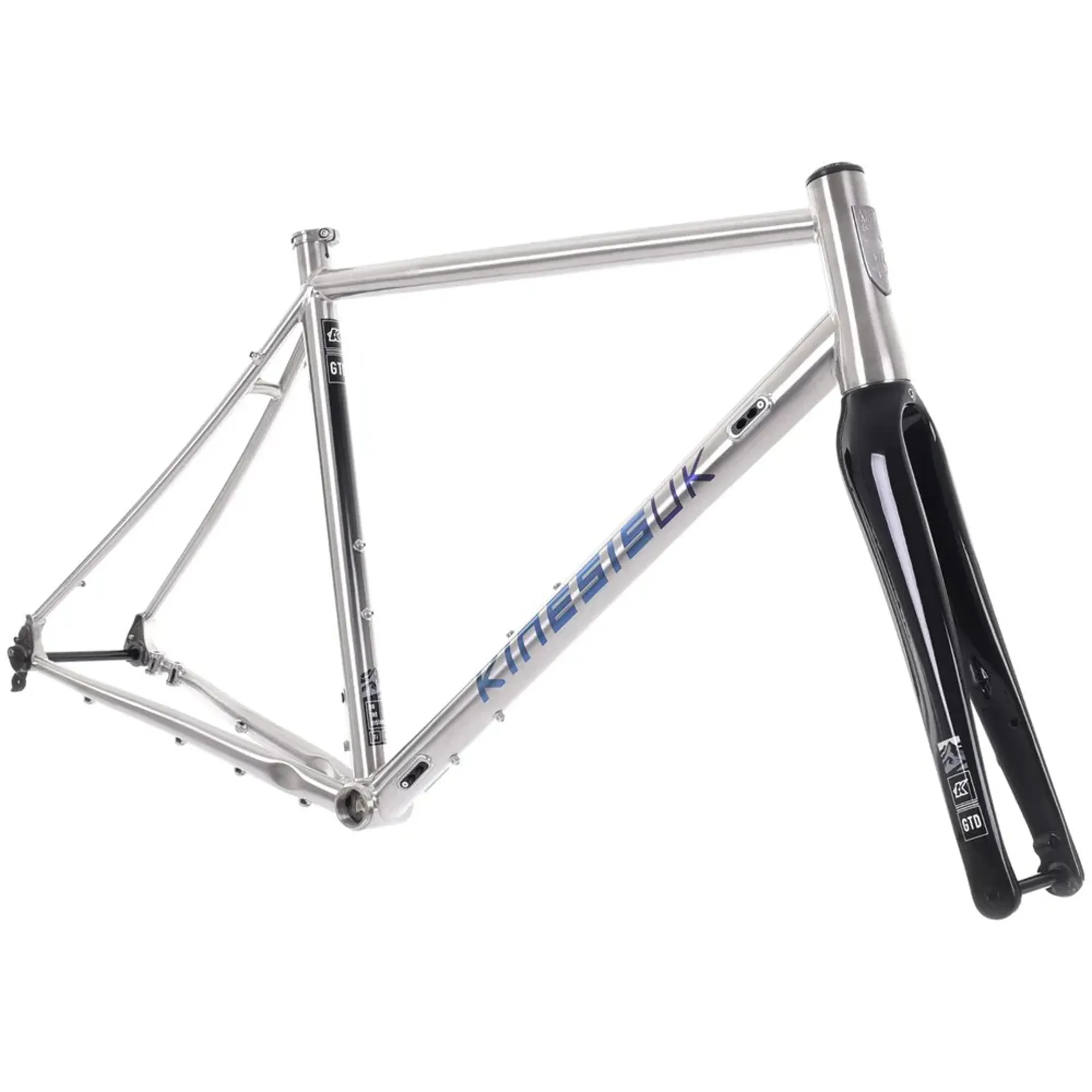

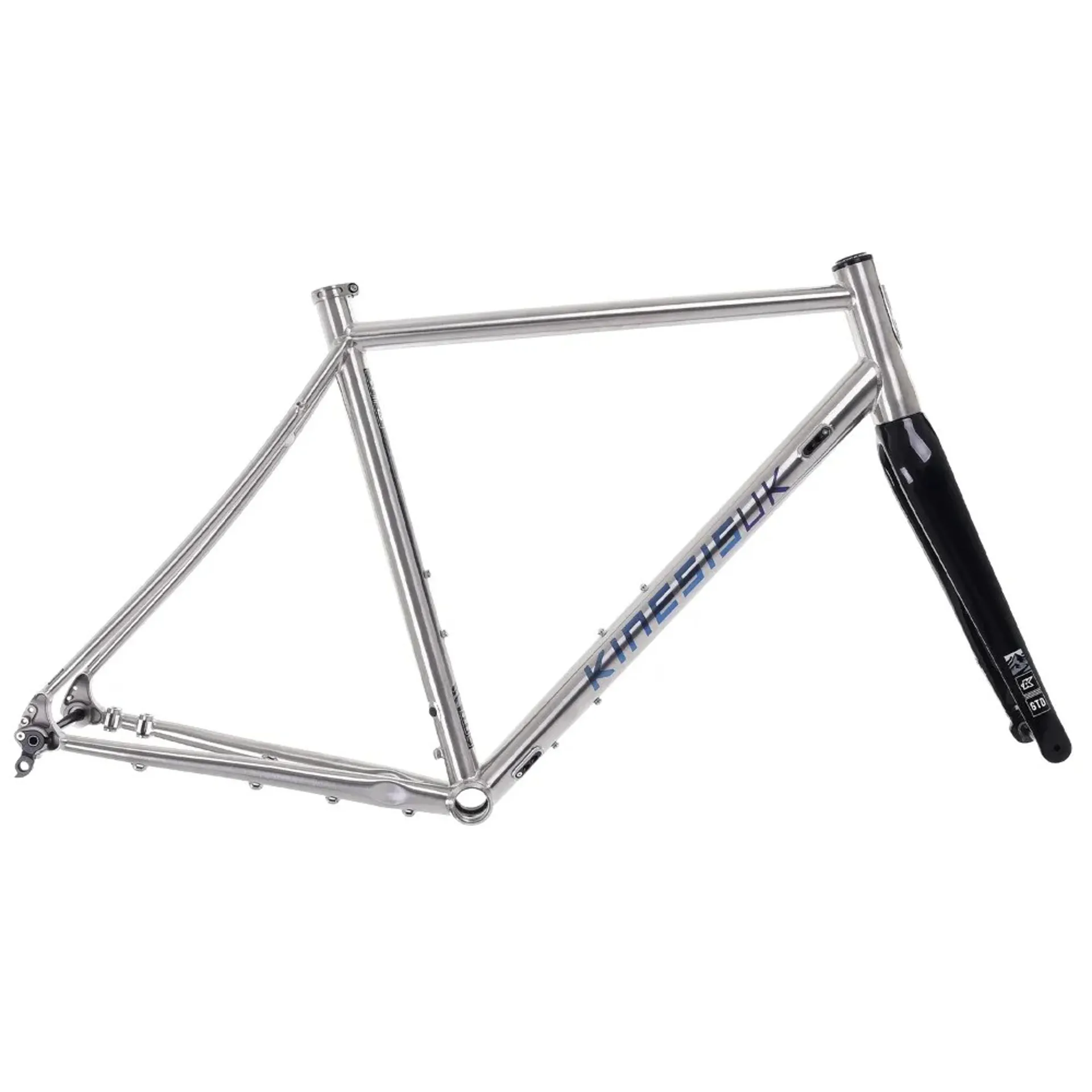

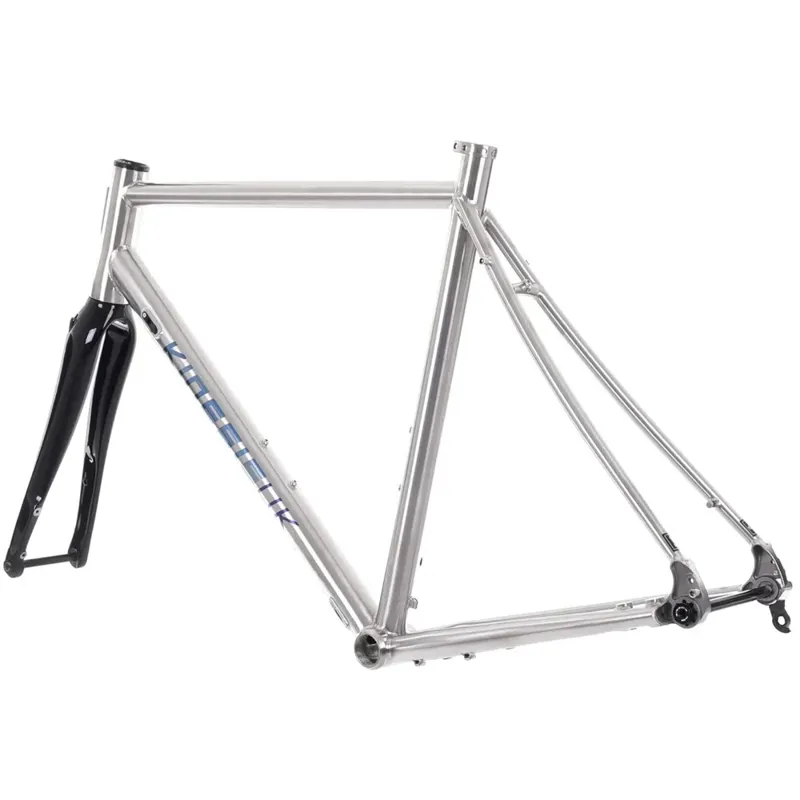

Kinesis - Frameset - GTD v2 -

Brand:Kinesis Uk

Code:1541SIL

Our flagship titanium road frameset is back with a host of refinements for an even more unforgettable ride. No matter whether you are doing endurance races century rides or commuting in style the gtd delivers pure riding joy on every single ride. The gtd comes equipped for all conditions riding because we believe the sublime ride of titanium shouldnt be reserved for summer sundays

• Custom drawn 3Al 2.5v titanium tubing.
• Kinesis carbon monocoque disc tapered fork.
• Flat mount specific calliper mounts.
• GW Tapered headset with ACB Bearings.
• 142x12mm Thru Axle rear spacing.
• 100x12mm Thru Axle front fork.

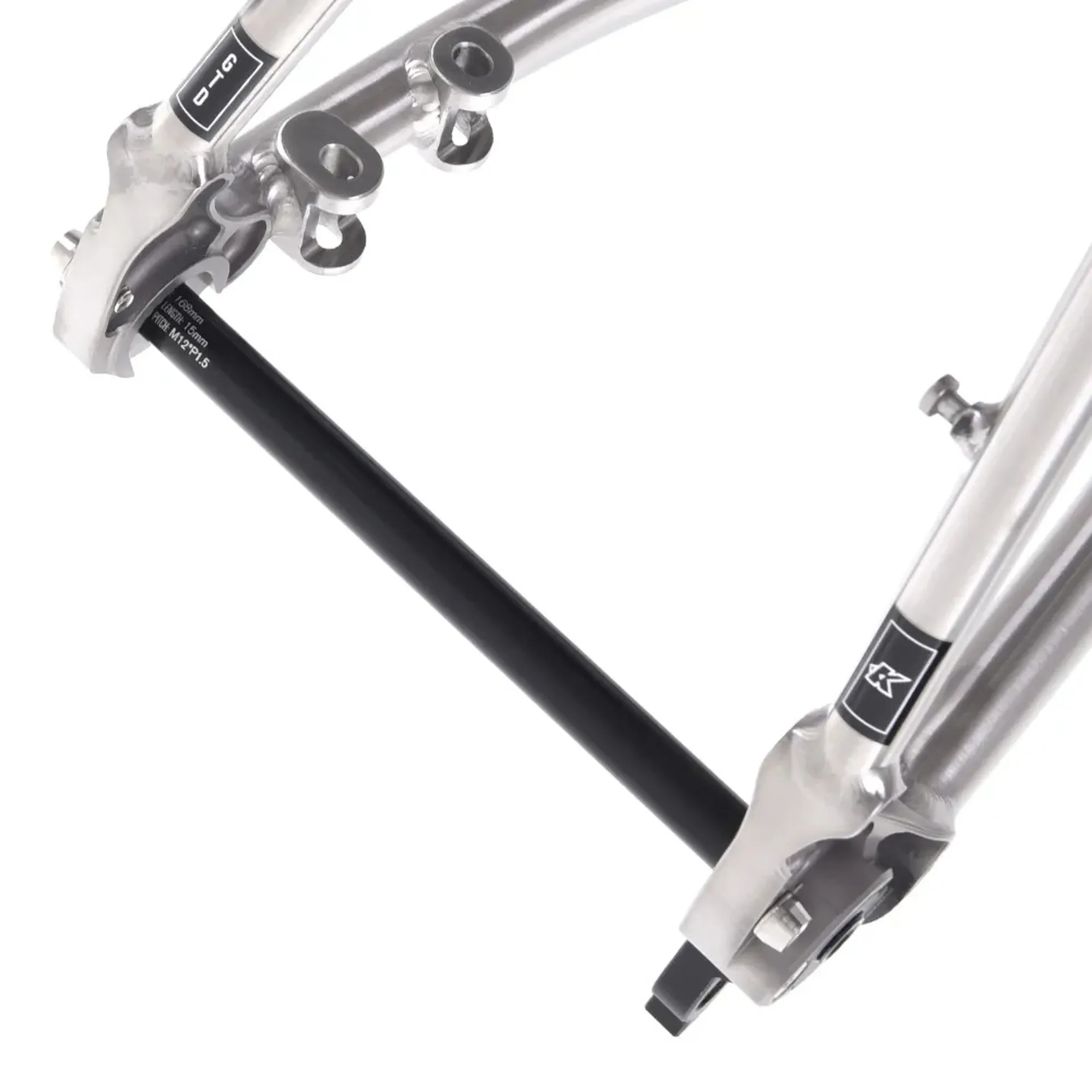

• GW ‘Switch Lever’ axles front and rear.
• Clearance for up to 34mm tyres.
• Clearance for up to 30mm tyres with guards.
• Compatible with Mechanical and Di2 systems (1x and 2x).
• Two bottle cage mounts.
• Mudguard and rack mounts.
• 34.9mm Front Mech clamp size.

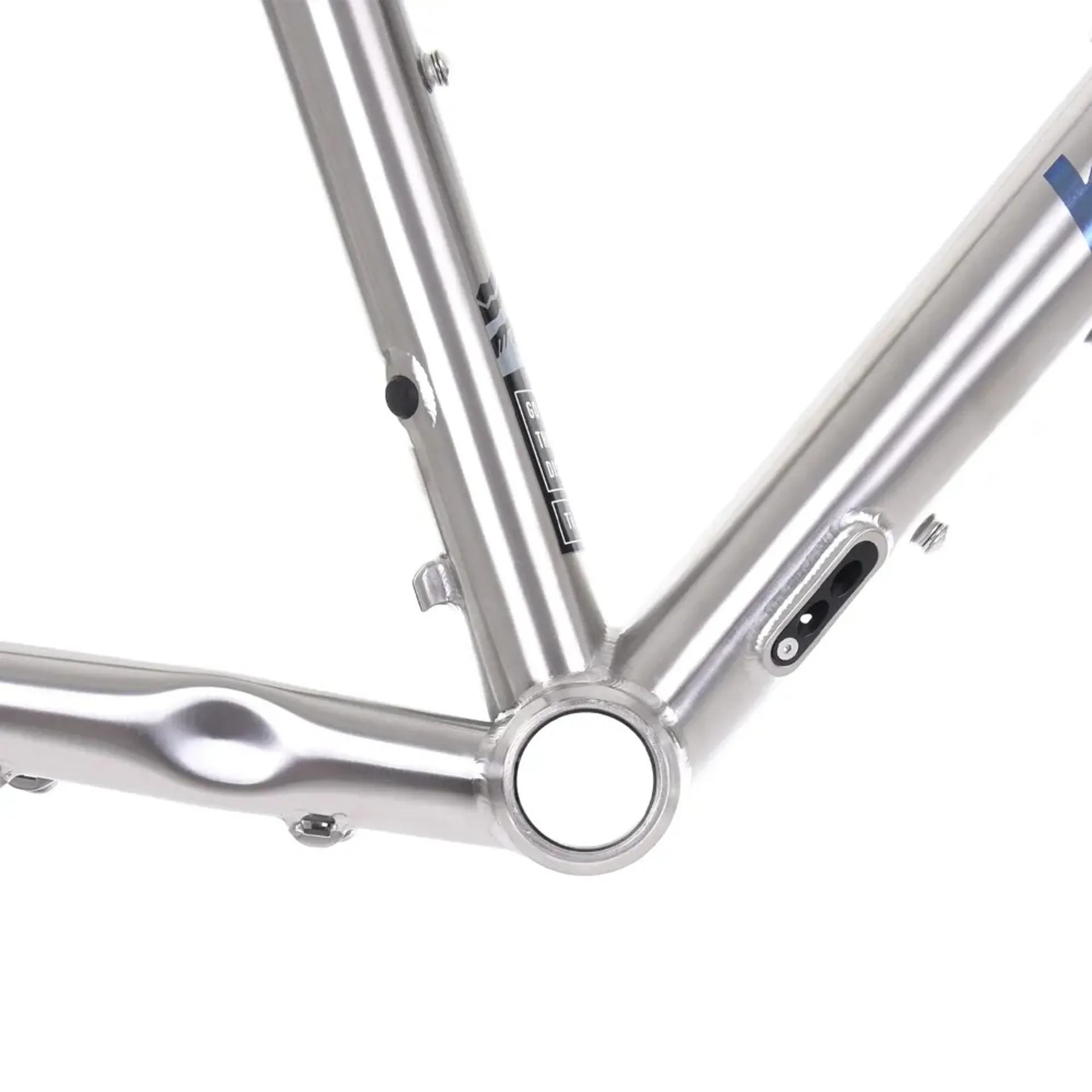

• 68mm threaded Bottom Bracket.
• 31.6mm Seatpost required.
• 32mm long flat mount disc brake bolts required for the frame.
• Brushed natural Titanium with laser etched Downtube.
• Available in 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
• Frame supplied with fork, headset, titanium seat clamp, front & rear Thru Axle, frame ports and cable guides.
• 5 years warranty (original owner, seewarranty information).

Frame Weight:
XXS (48cm ) - 1.63kg.
XS (50cm) - 1.66kg.
SM (52cm) - 1.70kg.
MD (54cm) - 1.74kg.
LG (56cm) - 1.79kg.
XL (58cm) - 1.84kg.
XXL (60cm) - 1.89kg.

Frame SizeXXS (48cm)XS (50cm)SM (52cm)MD (54cm)LG (56cm)XL (58cm)XXL (60cm)
Seat Tube Length C-T440470495540560580600
Top Tube Length Effective520530544558569581600
Head Tube Length123136149166180196215
Head Tube Angle70.570.5717171.571.572
Seat Tube Angle747473.7573.573.573.573
Bottom Bracket Drop72727270706969
Chain Stay Length420420420420420420420
Front Centre584596603615622634642
Wheelbase994100510121025103210441053
Stack530542556570585600620
Reach368375382389396403410
Fork Axle to Crown382382382382382382382
Fork Rake47474747474747
