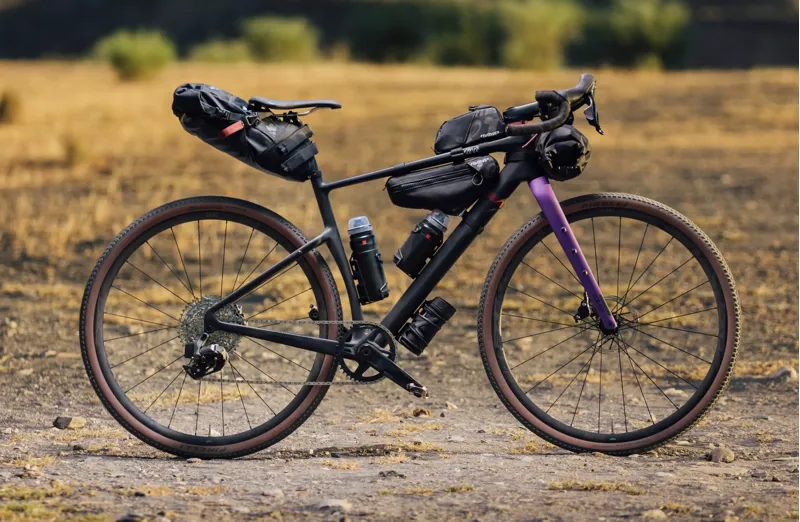

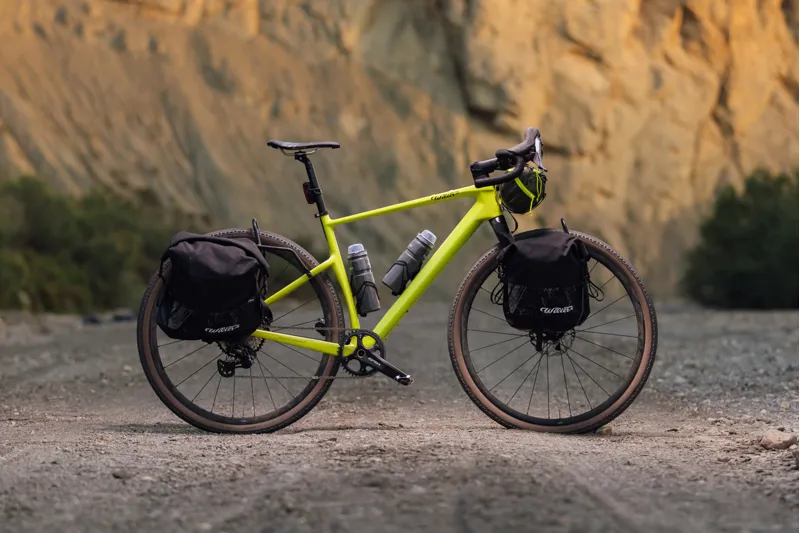

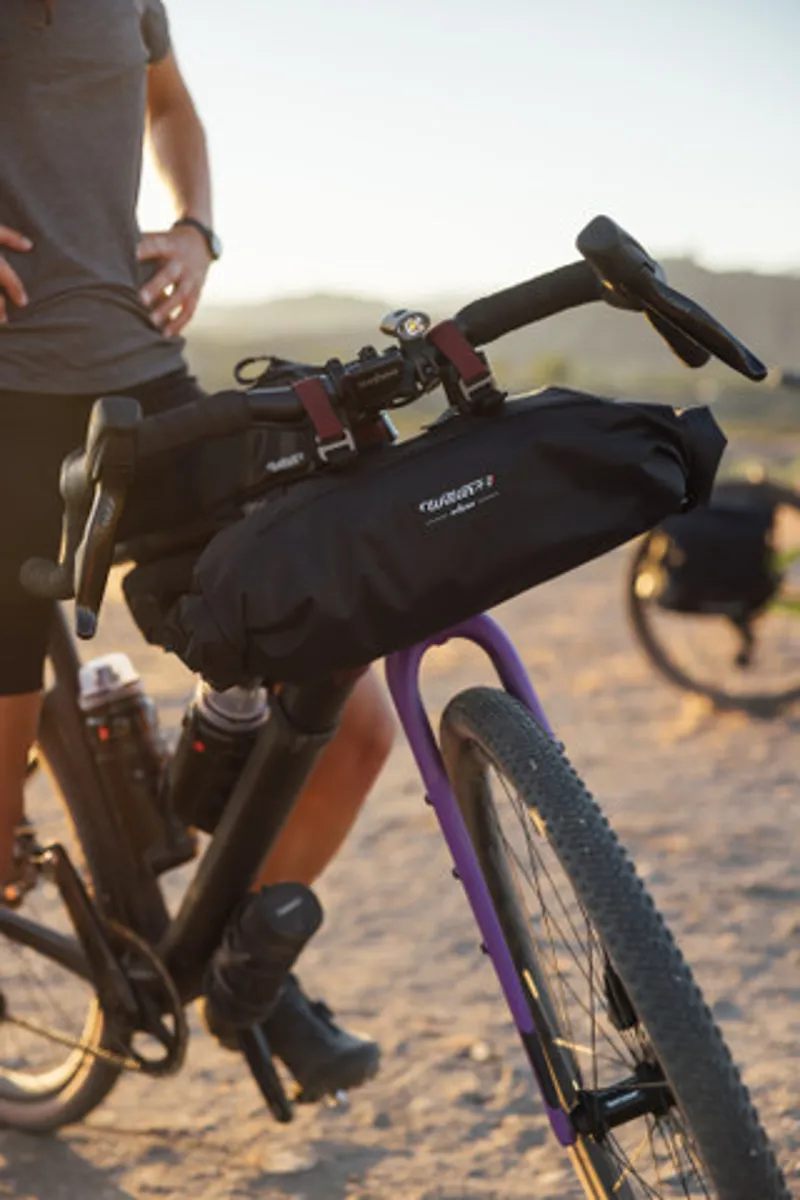

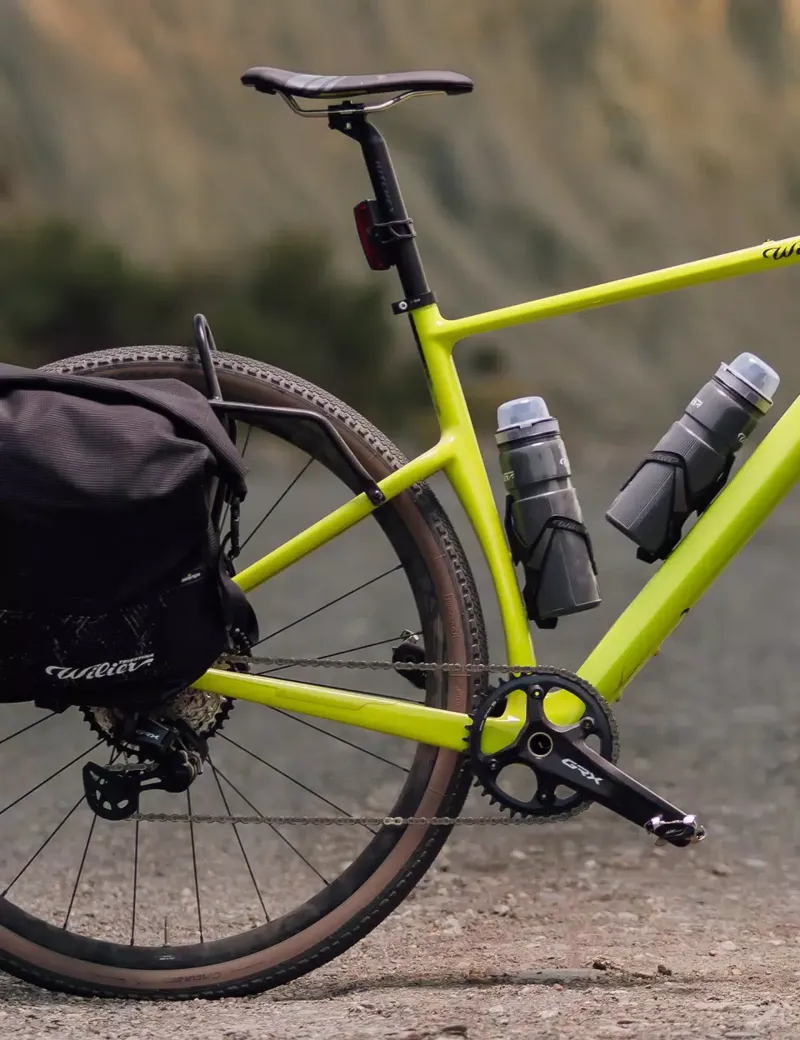

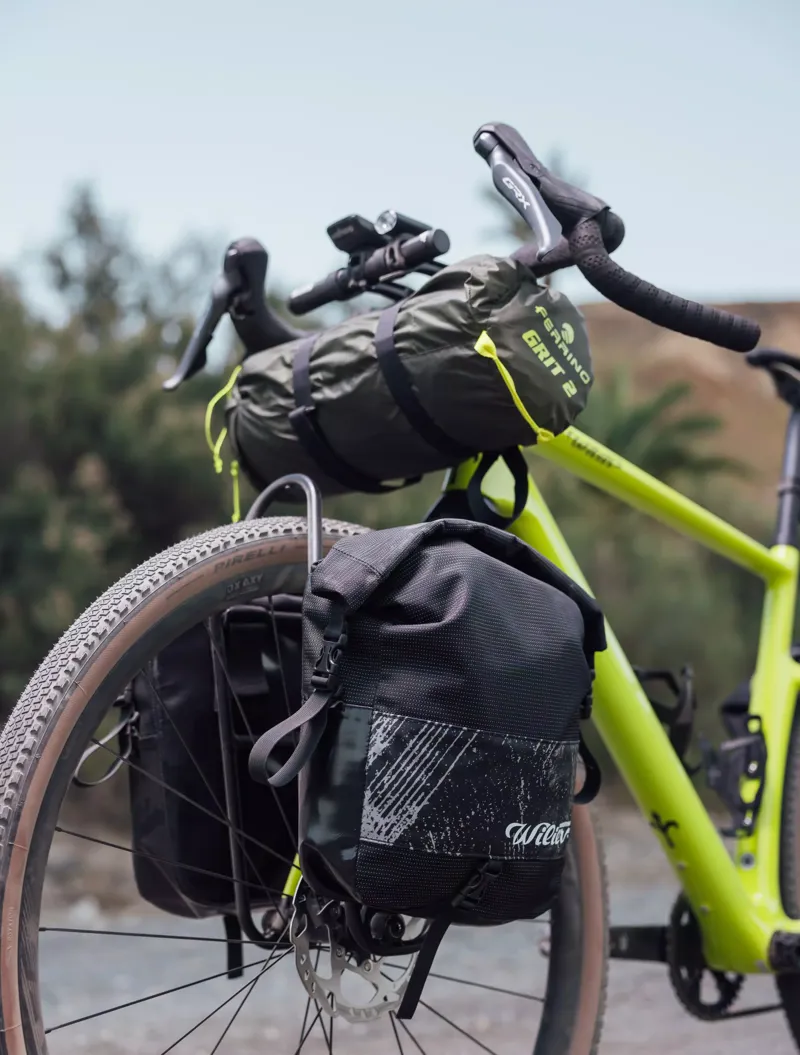

Adlar is made for bikepacking, for explorers, for bike travellers. The structure of the carbon fibre frame has been reinforced to allow a maximum additional load of 35 kg. This feature has been paired with new designs, a careful study of the geometries and completely integrated cable routing.
The frame weighs 1100 g and comes in five sizes: XS, S, M, L, XL. The geometries derive from the mountain bike: the frame triangle develops horizontally, the reach is quite pronounced. This solutions makeit possible to use a shorter handlebar stem that works in synergy with the open steering angle (70°). A transformation that translates into better handling and control on the more demanding trails with a fully loaded bike.

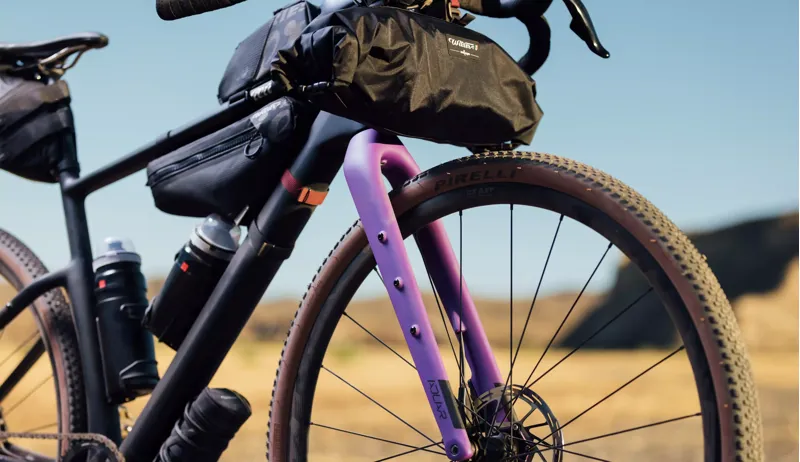

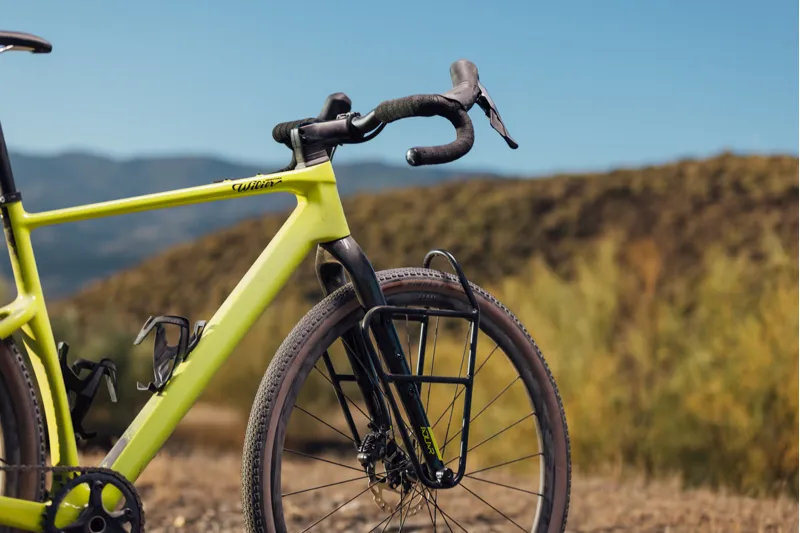

The generous tyre clearance is made to accommodate any 52 mm (52-622) gravel tyre up to mountain bike tyres measuring 29 x 2.00". The frame has been designed to fit a fork with extra-length blades. This configuration makes it easier to install a suspension fork (40 mm max travel compatible with the 1"1/4 - 1"1/2 conical headset series) without changing the frame overall geometries. Also, the opening on the fork's right stem allows the passage of the dynamo hub cable, if used. Even the 27.2 mm seatpost can be replaced with a dropper post.

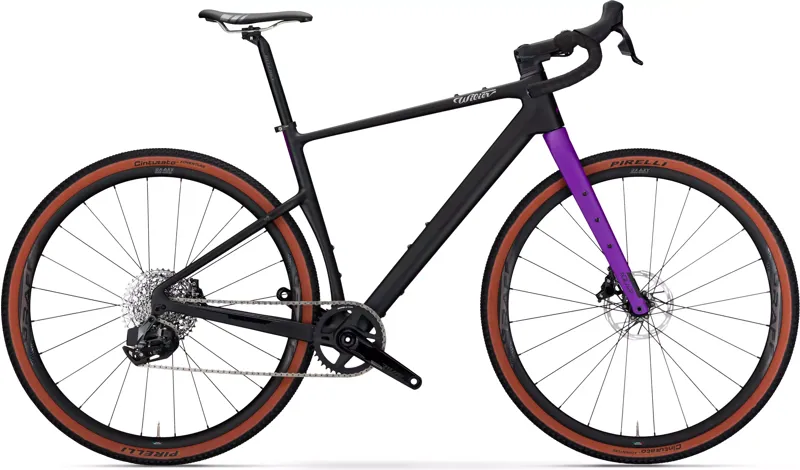

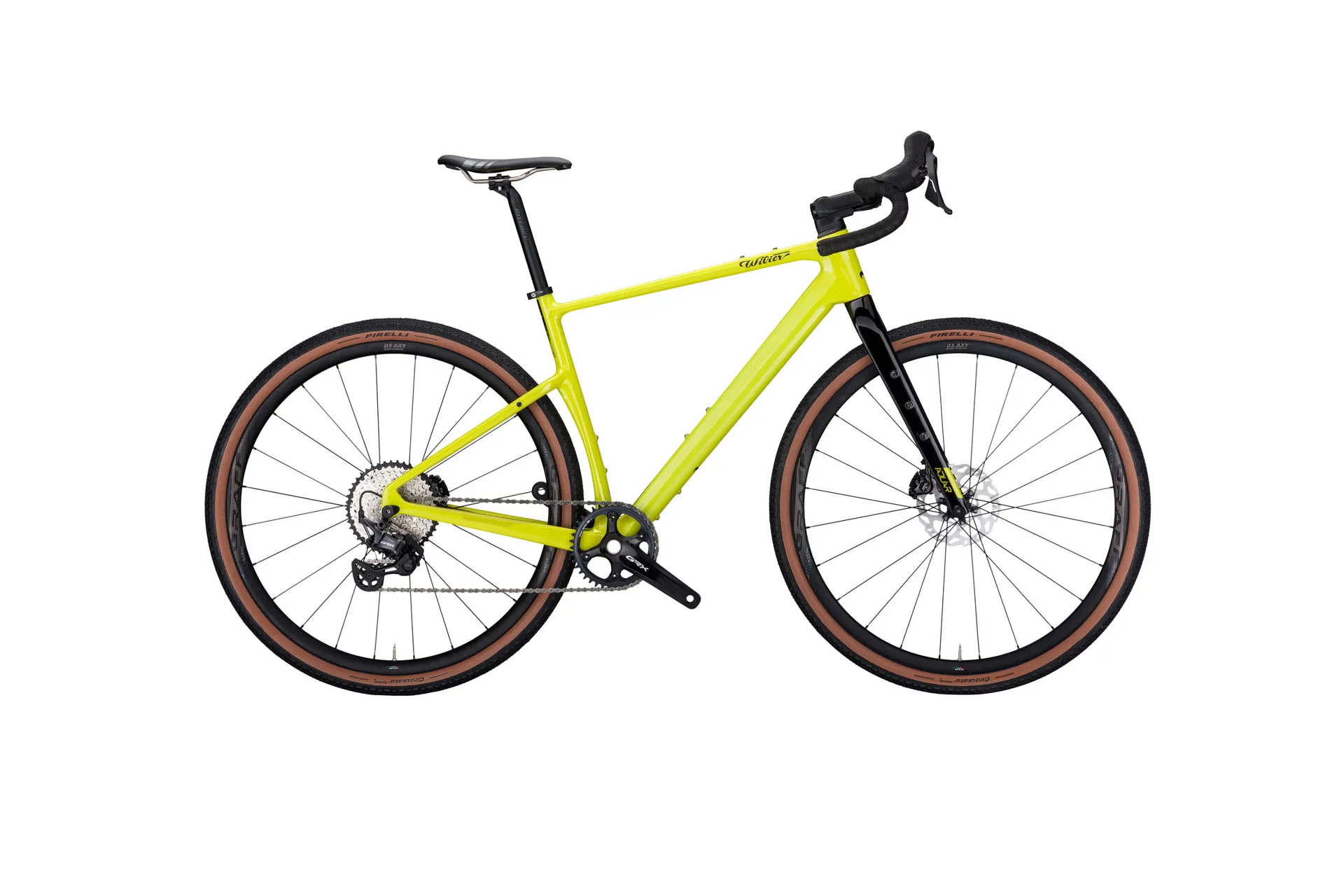

Frame: ADLAR - CARBON MONOCOQUE NHU-MOD
Fork: ADLAR - CARBON MONOCOQUE NHU-MOD

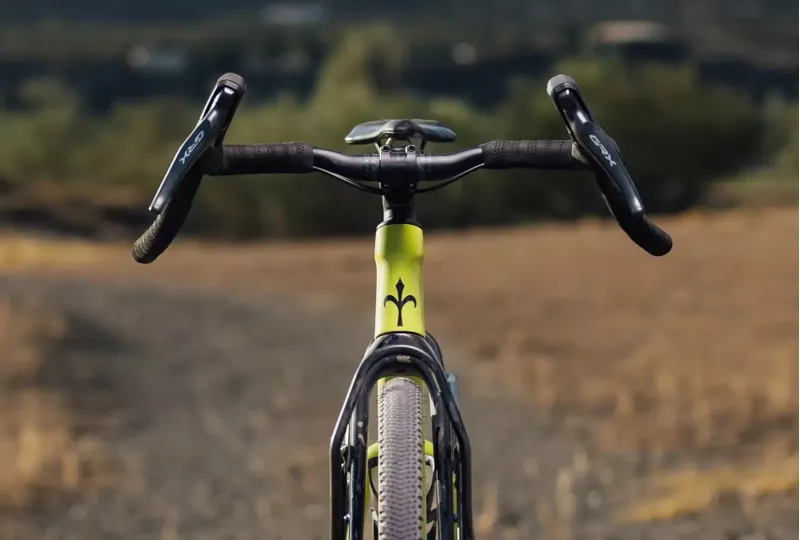

H-Bar: RITCHEY COMP CORRALITOS
Stem: WILIER STEMMA S
Headset: WILIER CUSTOM BEARINGS SUPERSLIM + RITCHEY CARTRIDGE
Shifters: SHIMANO GRX 1X12 RX-6100
Brakes: SHIMANO GRX BR-RX600
Rotors: SHIMANO CENTER LOCK SM-RT70 160 mm / 160 mm
Rear derailleur: SHIMANO GRX RD-RX822 GS
Crankset: SHIMANO GRX FC-RX610-1 40T
Bottom bracket: SHIMANO BB-RS500-PB R+L PRESS FIT
Cassette: SHIMANO CS-M7100-12 10-51T
Chain: SHIMANO DEORE CN-M6100 12S
Tyres: VITTORIA TERRENO DRY 700X47
Saddle: WILIER SADDLE ROAD TITAN RAIL M 245-144
Seatpost: RITCHEY COMP 2-BOLT ALU
Axle: THRU AXLE 12X125 FRONT - 12X171 REAR
Frame weight: 1190 g +/- 5%
Fork weight: 470 g +/- 5%
