Ride roads, gravel or dirt with this versatile aluminium all-rounder.
Ride roads, gravel or dirt with this versatile aluminium all-rounder.
Giant

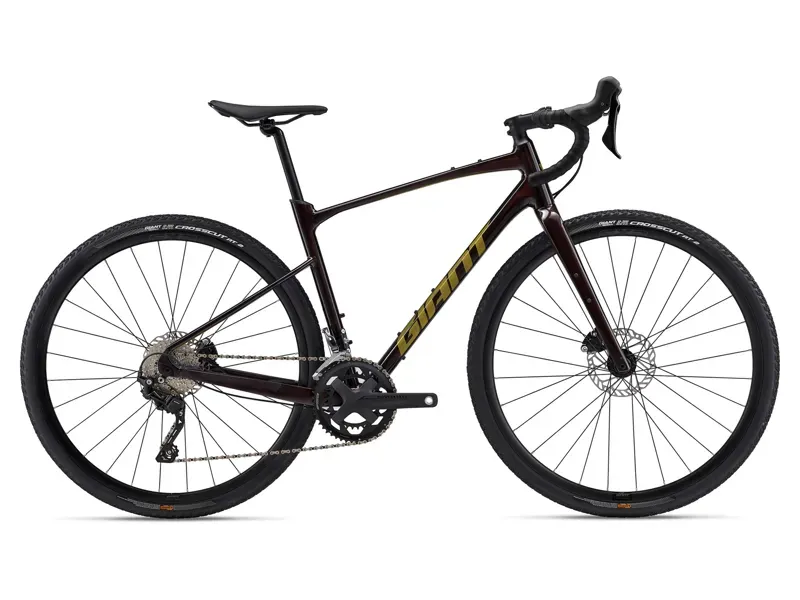

Giant Revolt 1 Endurance Road Bike in Cordovan

£1,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Giant Revolt 1 Endurance Road Bike in Cordovan

Season:2024

Brand:Giant

Code:9079002Cordovan

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Features:

  • Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
  • Dropped seatstays with thin tubing absorb road shocks and vibrations. The d-fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included d-fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Technical Information
  • Sizes
    S, M, M/L, L, XL
  • Colours
    Gloss Cordovan/Dried Herb
  • Frame
    ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm
  • Grips
    Cork tape with gel
  • Stem
    Giant Contact, 8-degree
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano GRX RX-400, 2x10
  • Front Derailleur
    Shimano Tiagra
  • Rear Derailleur
    Shimano GRX RX-400
  • Brakes
    Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-400 hydraulic
  • Cassette
    Shimano HG500, 11x34
  • Chain
    KMC X10 with Missing Link
  • Crankset
    FSA Omega Adventure, 32/48
  • Bottom Bracket
    FSA Mega EXO
  • Rims
    Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Stainless steel
  • Tyres
    Giant CrossCut AT 2, 700x38c, tubeless
  • Extras
    Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Max Chainring Size
    SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T
Sizing Information
Giant Revolt Geometry Chart

SMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASeat Tube Length(mm)450470490510530
BSeat Tube Angle73.5°|73.4°73.5°73.0°73.0°73.0°
CTop Tube Length(mm)550560575585600
DHead Tube Length(mm)135150165180195
EHead Tube Angle71.0°71.5°72.0°72.0°72.0°
FFork Rake(mm)5050505050
GTrail(mm)72|7568|7265|6865|6865|68
HWheelbase(mm)1025|10351030|10401035|10451045|10551061|1071
IChain Stay Length(mm)430|440430|440430|440430|440430|440
JBottom Bracket Drop(mm)80|8180|8180|8180|8180|81
KStack(mm)570586602616630
LReach(mm)381387391397407
MStand Over Height(mm)734|741752|759769|776786|793801|810
NHandlebar Width(mm)420440440460460
OStem Length(mm)6070808090
PCrank Length(mm)170172.5172.5175175
QWheel Size700C700C700C700C700C
